5-18 Forge Panel

本章要來教大家製作鍛造系統，首先，我們要有一個儲存鍛造公式的Json文件，分別紀錄材料ID跟數量，以及鍛造結果的ID，範例如下：

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
{"ForgeFormulaEntityList":[
    {
        "Item1ID":15,
        "Item1Amount":1,
        "Item2ID":17,
        "Item2Amount":2,
        "ResultID":13
    },
    {
        "Item1ID":16,
        "Item1Amount":1,
        "Item2ID":17,
        "Item2Amount":5,
        "ResultID":8
    }
]}

記得要將Json文件儲存在Resources資料夾底下，我們會用Resource.Load讀取。

接著，因為目前的介面已經滿了，所以我將商店的介面藏起來，如下圖。

隱藏的方式，請在Vendor Panel的Inspector內設定Panel的Panel Alpha為0，Canvas Group的Alpha為0即可，如下圖。

接著我們複製一下Vendor Panel重複利用。

取名為Forge Panel，我們的鍛造介面只需要兩個Slot，所以將其他無用的Slot刪除。

我複製了Close Btn，改成啟動鍛造的按鈕，取名為Forge Btn。

在Forge Btn底下新增UI/Text，文字寫『開始』，請大家自己設定一下字型大小跟顏色。

完成後，介面大致上如下圖。

接著建立Script名為ForgeFormula.cs，這是要用來放置解析Json資料後的類別。
 ForgeFormula.cs：

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using System;

namespace RPG.Inventory{
 [Serializable]
 public class ForgeFormulaList{
  public List<forgeformula> ForgeFormulaEntityList;
 }

 [Serializable]
 public class ForgeFormula : ISerializationCallbackReceiver{
  public int Item1ID;
  public int Item1Amount;
  public int Item2ID;
  public int Item2Amount;
  public int ResultID;

  List<int> requireList = new List<int> ();

  public void OnAfterDeserialize(){
   for (int i = 0; i < Item1Amount; i++) {
    requireList.Add (Item1ID);
   }
   for (int i = 0; i < Item2Amount; i++) {
    requireList.Add (Item2ID);
   }
  }

  public List<int> GetRequireList(){
   return requireList;
  }

  public void OnBeforeSerialize(){}

  public bool MatchFormula(List<int> materialsIDList){
   List<int> checkList = new List<int> (materialsIDList);
   foreach(int ID in requireList){
    bool isSuccess = checkList.Remove (ID);
    if (isSuccess == false) {
     return false;
    }
   }
   return true;
  }
 }
}
</int></int></int></int></int></int></forgeformula>

再來建立ForgeSlot.cs，由於本次鍛造的Slot沒有特殊處理，所以沒有覆寫OnPointerDown方法，另外也可用來讓InventorySystem識別不同種類的Slot。
ForgeSlot.cs

?
1
2
3
4
5
6
7
8
9
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RPG.Inventory{
 public class ForgeSlot : Slot {

 }
}

記得Forge Panel內的兩個ForgeSlot也要修改為ForgeSlot.cs唷！


再來是修改InventorySystem的部分啦！我將主要修改的程式碼截圖說明，如下圖為解析Json的部分。

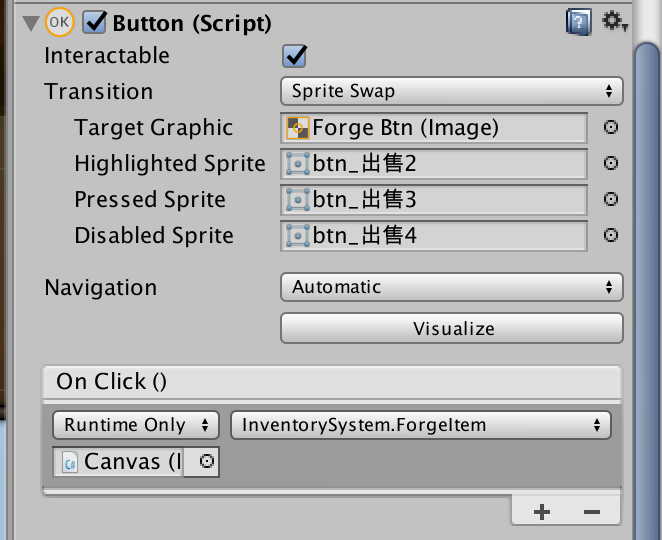

再來是於Forge Panel按下『開始』按鈕的事件，我們先要取得目前Forge Slot內有哪些Item，並將這些材料存入materialsIDList。

然後用foreach迴圈取得每個ForgeFormula物件，並與materialIDList一一配對材料是否符合，符合公式的話便將鍛造成果存到背包內，並消耗對應的材料。
以下提供InventorySystem.cs的完整程式碼：

?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Assertions;
using UnityEngine.UI;
using UnityEngine.EventSystems;

namespace RPG.Inventory{
 public class InventorySystem : MonoBehaviour {

  [SerializeField] ToolTip toolTip;
  [SerializeField] ItemUI pickedItem;
  [SerializeField] CharacterProperty characterProperty;

  public bool isPickedItem = false;
  ItemList itemList;
  ForgeFormulaList forgeFormulaList;
  Slot[] slotList;

  int coinAmount = 100;
  Text coinText;

  void Start () {
   ParseItemsJson ();
   ParseForgeFormulaJson ();
   slotList = GetComponentsInChildren<slot> ();
   coinText = GameObject.Find ("Coin").GetComponentInChildren<text>();
   coinText.text = coinAmount.ToString();
   InitialVendorItem ();
  }

  void Update(){
   PressGToAddItem ();
   MovePickedItemByMousePosition ();
   DiscardPickedItem ();
  }

  private bool ConsumeCoin(int amount){
   if (coinAmount > 0) {
    coinAmount -= amount;
    coinText.text = coinAmount.ToString ();
    return true;
   }
   return false;
  }

  private void EarnCoin(int amount){
   coinAmount += amount;
   coinText.text = coinAmount.ToString ();
  }

  public void BuyItem(Item item){
   bool isSuccess = ConsumeCoin (item.BuyPrice);
   if (isSuccess) {
    StoreItem (item);
   }
  }

  public void SellItem(int sellAmount){
   int sellPrice = pickedItem.Item.SellPrice * sellAmount;
   ReducePickedItem (sellAmount);
   EarnCoin (sellPrice);
  }

  public void PickupItem(Item item, int amount){
   pickedItem.SetItem (item, amount);
   pickedItem.Show ();
   toolTip.Hide ();
   isPickedItem = true;
  }

  public void ReducePickedItem(int amount){
   pickedItem.ReduceAmount(amount);
   if (pickedItem.Amount <= 0) {
    isPickedItem = false;
    pickedItem.Hide ();
   }
  }

  public void WearingEquipment(ItemUI equipmentToWear){
   if ((equipmentToWear.Item is Equipment) == false) {
    return;
   }

   foreach(Slot slot in slotList){
    EquipmentSlot equipmentSlot = (slot as EquipmentSlot);
    if(equipmentSlot && equipmentSlot.EquipmentTypeIsEqual (equipmentToWear.Item)){
     if (equipmentSlot.transform.childCount > 0) {
      // 人物已配戴裝備了，將裝備與背包的裝備交換
      equipmentSlot.GetComponentInChildren<itemui> ().ExchangeItem(equipmentToWear);
     } else {
      // 人物未配戴裝備，直接穿上
      equipmentSlot.StoreItem (equipmentToWear.Item);
      // 銷毀背包內的裝備
      Destroy (equipmentToWear.gameObject);
     }
     break;
    }
   }
   UpdatePropertyText ();
  }

  public ItemUI GetPickedItem(){
   return pickedItem;
  }

  public Slot[] GetSlotList(){
   return slotList;
  }

  public void ShowToolTip(string content){
   toolTip.Show (content);
  }

  public void HideToolTip(){
   toolTip.Hide ();
  }

  public void UpdatePropertyText(){
   characterProperty.UpdatePropertyText ();
  }

  public bool StoreItem(int id){
   Item item = GetItemByID (id);
   return StoreItem (item);
  }

  public bool StoreItem(Item item){
   if (item == null) {
    return false;
   }

   // 若物品的儲存容量為1，則將該物品直接放進空的Slot
   if (item.Capacity == 1) {
    return StoreItemInEmptySlot (item);
   }
   // 將相同的Item放在同一個Slot
   return StoreItemInSameSlot(item);
  }

  private bool StoreItemInSameSlot(Item item){
   foreach (Slot slot in slotList) {
    // 避開VendorSlot
    if (slot is VendorSlot) {
     continue;
    }
    if (slot.transform.childCount >= 1 && slot.GetItemID () == item.ID &&
     slot.IsFilled () == false) {
     // 將新Item與同一個Item放在一起
     slot.StoreItem (item);
     return true;
    }
   }
   // 若背包內不存在相同的Item，則放進空的Slot
   return StoreItemInEmptySlot (item);
  }

  private bool StoreItemInEmptySlot(Item item){
   foreach (Slot slot in slotList) {
    // 避開VendorSlot
    if (slot is VendorSlot) {
     continue;
    }
    if (slot.transform.childCount == 0) {
     // 將Item存進該Slot
     slot.StoreItem (item);
     return true;
    }
   }
   Debug.LogError ("No Empty Slot.");
   return false;
  }

  public void ForgeItem(){
   List<int> materialsIDList = new List<int> ();
   List<forgeslot> forgeSlotList = new List<forgeslot> ();
   // 取得Forge Slot內的Item
   foreach (Slot slot in slotList) {
    ForgeSlot forgeSlot = (slot as ForgeSlot);

    if (forgeSlot && slot.transform.childCount > 0) {
     ItemUI currentItemUI = slot.transform.GetComponentInChildren<itemui> ();
     for (int i = 0; i < currentItemUI.Amount; i++) {
      materialsIDList.Add (currentItemUI.Item.ID);
      forgeSlotList.Add (forgeSlot);
     }
    }
   }
   // 檢查item組合是否匹配任一鍛造公式
   foreach (ForgeFormula formula in forgeFormulaList.ForgeFormulaEntityList) {
    if (formula.MatchFormula (materialsIDList)) {
     // 符合公式，存入鍛造物品到背包內
     StoreItem (formula.ResultID);
     // 消耗材料
     ConsumeMaterials(formula, forgeSlotList);
     break;
    }
   }
  }

  private void ConsumeMaterials(ForgeFormula formula, List<forgeslot> forgeSlotList){
   List<int> requireList = formula.GetRequireList();
   foreach (int ID in requireList) {
    foreach (ForgeSlot forgeSlot in forgeSlotList) {
     if (forgeSlot.transform.childCount > 0 && forgeSlot.GetItemID() == ID) {
      ItemUI itemUI = forgeSlot.GetComponentInChildren<itemui> ();
      itemUI.ReduceAmount (1);
      if (itemUI.Amount <= 0) {
       DestroyImmediate (itemUI.gameObject);
      }
      break;
     }
    }
   }
  }

  private void PressGToAddItem(){
   // 測試程式碼，手動生成物品
   if (Input.GetKeyDown (KeyCode.G)) {
    StoreItem (Random.Range(1,18));
   }
  }

  private void InitialVendorItem(){
   Item[] vendorItemList = new Item[10];
   // 手動初始化要放入商店的物品
   vendorItemList [0] = GetItemByID (1);
   vendorItemList [1] = GetItemByID (2);
   vendorItemList [2] = GetItemByID (3);
   vendorItemList [3] = GetItemByID (4);
   vendorItemList [4] = GetItemByID (5);
   vendorItemList [5] = GetItemByID (6);
   vendorItemList [6] = GetItemByID (7);
   vendorItemList [7] = GetItemByID (8);
   vendorItemList [8] = GetItemByID (1);
   vendorItemList [9] = GetItemByID (2);
   foreach (Item item in vendorItemList) {
    foreach (Slot slot in slotList) {
     // 限定Slot類型為VendorSlot
     VendorSlot vendorSlot = (slot as VendorSlot);
     // 如果同類型物品疊加在一起
     if (vendorSlot && slot.transform.childCount >= 1
      && slot.GetItemID () == item.ID &&
      slot.IsFilled () == false) {
      slot.StoreItem (item);
      break;
     } // 如果沒有同類物品，則放入空Slot
     else if (vendorSlot && slot.transform.childCount == 0) {
      slot.StoreItem (item);
      break;
     }
    }
   }
  }

  private void MovePickedItemByMousePosition(){
   if (isPickedItem) {
    // 將滑鼠座標轉換成Canvas上的座標
    Vector2 position;
    Canvas canvas = GetComponentInParent<canvas> ();
    RectTransformUtility.ScreenPointToLocalPointInRectangle (
     canvas.transform as RectTransform,
     Input.mousePosition,
     null,
     out position);
    pickedItem.SetLocalPosition (position);
   }
  }

  private void DiscardPickedItem(){
   // 處理物品丟棄
   // IsPointerOverGameObject(-1)判斷滑鼠左鍵是否有碰到GameObject
   if (pickedItem && Input.GetMouseButtonDown (0)
    && EventSystem.current.IsPointerOverGameObject(-1) == false) {
    // TODO 跟Slot.cs的PickupAllSlotItem相衝突，若用DestroyImmediate會導致此方法被呼叫
    isPickedItem = false;
    pickedItem.Hide ();
   }
  }

  private Item GetItemByID(int id){
   foreach (Item entity in itemList.ConsumableEntityList) {
    if (entity.ID == id) {
     return entity;
    }
   }
   foreach (Item entity in itemList.EquipmentEntityList) {
    if (entity.ID == id) {
     return entity;
    }
   }
   foreach (Item entity in itemList.MaterialEntityList) {
    if (entity.ID == id) {
     return entity;
    }
   }
   return null;
  }

  private void ParseItemsJson(){
   // 從Resource資料夾中讀取Items.json
   TextAsset json = Resources.Load<textasset> ("Items");
   // 解析Json格式
   itemList = JsonUtility.FromJson <itemlist>(json.text);
  }

  private void ParseForgeFormulaJson(){
   TextAsset json = Resources.Load<textasset> ("ForgeFormula");
   forgeFormulaList = JsonUtility.FromJson <forgeformulalist>(json.text);
  }
 }
}
</forgeformulalist></textasset></itemlist></textasset></canvas></itemui></int></forgeslot></itemui></forgeslot></forgeslot></int></int></itemui></text></slot>

最後，記得在Forge Panel的Forge Btn中的Button事件設定，要將InventorySystem拉進去，並設定方法為ForgeItem唷！我的範例中，因為InventorySystem是放在Canvas內，所以如下圖會看見我拉進去的是Canvas。

來執行遊戲看看吧，我放入一個鍛造秘笈跟兩個鐵塊。

按下『開始』後，背包內出現了一把斧子，然後材料也被消耗掉了。

留言

張貼留言
